On a scorching summer day, the first thing you do after getting in your car is probably turning on the air conditioning for that instant cool relief. But have you ever wondered how that comfortable cold air is actually created? The car's air conditioning system works like a busy "heat mover," and the refrigerant is the "blood" it uses to transport heat. This article will visually guide you through how the refrigerant cycles within the AC system to produce cool air, all in about a minute.

The Core Cycle: The 4-Step Refrigeration Journey.

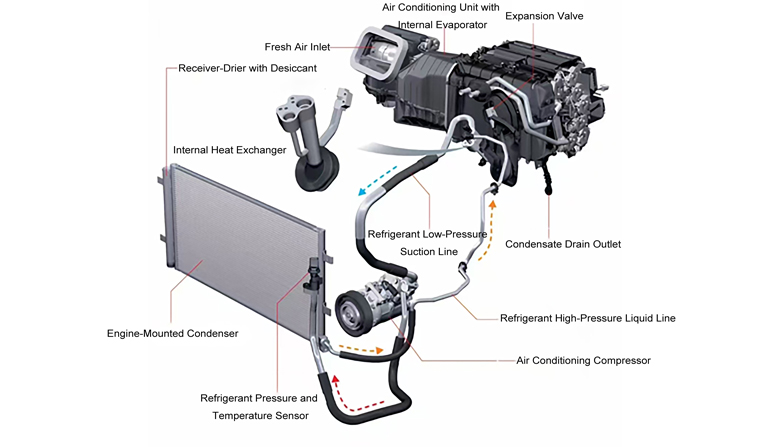

The cooling cycle of a car's AC system is based on a core physical principle: liquids absorb a significant amount of heat from their surroundings when they evaporate. The refrigerant uses this property, circulating through four key components and constantly changing from liquid to gas and back again, continuously "moving" heat from the inside of the car to the outside.

This continuous process can be clearly broken down into four steps:

Step 1: Compression (Pressurization & Heating Up)

• Component: The Compressor – The Heart of the System.

• Process: The compressor sucks in low-pressure, low-temperature gaseous refrigerant coming from the evaporator. It then compresses this gas forcefully. This action, much like pressurizing air with a pump, drastically increases the refrigerant's pressure and temperature, turning it into a high-pressure, high-temperature gas.

• Goal: To create the necessary conditions for the refrigerant to release its heat in the next component.

Step 2: Condensation (Heat Release & Liquefaction)

• Component: The Condenser – The Radiator at the Front.

• Process: The hot, high-pressure gaseous refrigerant flows into the condenser, which is located in front of the car's radiator. Outside air is blown across (by fans or vehicle motion) the condenser's fins, carrying away its heat. As the refrigerant cools down, it condenses, changing from a high-pressure gas into a high-pressure liquid (still fairly warm).

• Goal: To release the heat absorbed from inside the car, plus the heat generated by the compressor's work, into the outside atmosphere.

Step 3: Expansion (Pressure Drop & Cooling Down)

• Component: The Expansion Valve (or Orifice Tube) – The System's Restrictor.

• Process: The warm, high-pressure liquid refrigerant is forced through the very narrow opening of the expansion valve. Its pressure drops suddenly. This is similar to what happens when you use a spray can; the liquid sprays out as its pressure drops instantly. The refrigerant thus becomes a cold, low-pressure, mist-like liquid (a mixture of liquid and gas droplets).

• Goal: To prepare the refrigerant for rapid evaporation and heat absorption in the next stage.

Step 4: Evaporation (Heat Absorption & Cooling)

• Component: The Evaporator – The Cold Air Maker Inside Your Car.

• Process: The misty, cold, low-pressure refrigerant enters the evaporator, hidden deep inside your dashboard. The blower fan pushes the car's interior air across the evaporator's fins. The refrigerant absorbs heat from this passing air and rapidly evaporates (boils), turning back into a low-pressure, low-temperature gas. The air, now stripped of its heat, becomes cold and is blown into the cabin.

• Goal: To absorb heat from the car's interior, producing the cooling effect.

At this point, the refrigerant has completed a full cycle. It returns to the compressor as a low-pressure, low-temperature gas, ready to be compressed again and start a new journey of "heat moving."

Summary

In simple terms, car AC cooling is the refrigerant circulating through four main components – the Compressor, Condenser, Expansion Valve, and Evaporator – undergoing four processes: Compression (heating) -> Condensation (heat release) -> Expansion (cooling) -> Evaporation (heat absorption). This cycle repeats continuously, transferring heat from inside the car to the outside, providing us with cool comfort.
