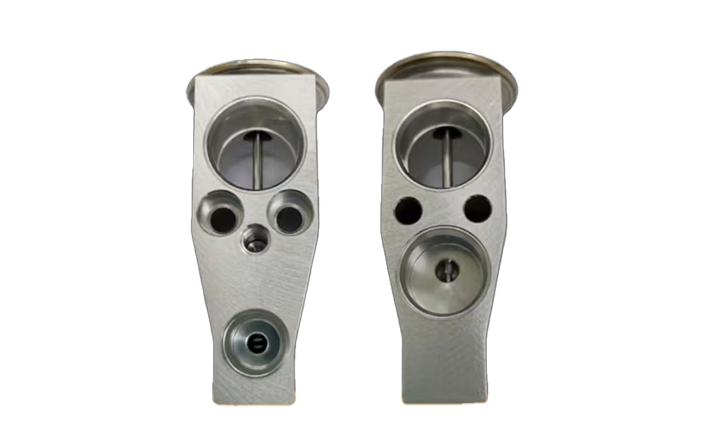

The thermal expansion valve (TXV) is a critical component in a car’s air conditioning (AC) system. It regulates refrigerant flow to ensure the evaporator operates efficiently. When the expansion valve malfunctions, it can degrade AC performance or even damage other components. Below are common problems caused by a faulty expansion valve and their underlying mechanisms.

1. Significant Loss of Cooling Efficiency

Symptoms: Warm air from vents, slow cooling.

Causes:

• Valve clogging: Debris or moisture in the refrigerant can freeze and block the valve core, restricting flow.

• Insufficient valve opening: A partially open valve reduces refrigerant supply to the evaporator, limiting heat absorption.

• Faulty temperature sensing bulb: Poor contact with the evaporator outlet or internal leaks prevent the valve from adjusting properly.

Impact: Cabin temperature struggles to drop, reducing comfort, especially in hot weather.

2. Evaporator Freezing

Symptoms: Reduced airflow or no airflow, ice buildup on the evaporator.

Causes:

• Valve stuck open: Excess refrigerant floods the evaporator, lowering its temperature below freezing and icing its surface.

• Failed temperature sensing: The valve cannot detect the evaporator’s outlet temperature, leading to continuous overcooling.

Consequences: Ice blocks airflow, crippling AC function and potentially damaging the blower motor.

3. Unusual AC System Noises

Symptoms: Hissing, clicking, or rattling sounds during compressor operation.

Causes:

• Erratic refrigerant flow: Pressure fluctuations from an unstable valve opening create turbulence noises.

• Mechanical valve sticking: A jammed valve core generates vibration or clicking sounds.

Risks: Prolonged pressure imbalances may accelerate compressor wear.

4. Abnormal High/Low Side Pressure

Diagnostic Clues:

• High-side pressure spikes: A clogged valve traps high-pressure refrigerant, causing readings above normal (typically >300 psi).

• Low-side pressure drops: Insufficient valve opening lowers suction pressure below standard levels (normal range: 25–40 psi).

Secondary effects: Pressure irregularities may trigger system safeguards, forcing the compressor to cycle on/off repeatedly.

5. Risk of Compressor Damage

Chain Reaction:

Liquid slugging: Faulty valves allow liquid refrigerant (instead of vapor) to enter the compressor, causing hydraulic shock and internal damage.

Poor lubrication: Refrigerant flow issues disrupt oil circulation, increasing compressor wear.

Result: Costly compressor repairs or replacement (often over 40% of total AC system costs).

6. Increased Fuel Consumption

Indirect impact:

• A struggling AC system forces the engine to work harder, raising fuel consumption by 10–20%.

• Prolonged operation under high load further elevates fuel usage.

Diagnosis and Repair Tips

1. Pressure tests: Use gauges to check high/low-side pressures for valve clogs or improper opening.

2. Temperature checks: Measure the temperature difference between the evaporator inlet and outlet (normal range: 8–12°C).

3. Inspect the sensing bulb: Ensure it's securely attached and undamaged.

4. Replacement guidelines: Replace the valve if internal damage is confirmed, and flush the system to remove contaminants.

Summary

Though small, the expansion valve acts as the AC system's “flow commander.” Its failure not only reduces cooling but can also lead to costly cascading damage. Prompt repairs are crucial when AC issues arise. Regular maintenance—replacing cabin filters and cleaning refrigerant lines—can minimize valve clogs and extend system life.
